品名： Inner Ring Star Welding Machine-pneumatic type
关键词：inner ring start welding machine, spot welding machine, star welding machine
OMEX offers three types of inner ring star welding machines, one is traditional pneumatic type wire trolley, another is automatic type trolley, the latest one is full automatic system, center disc feeding, wire feeding, finish product collect are all done automatically.

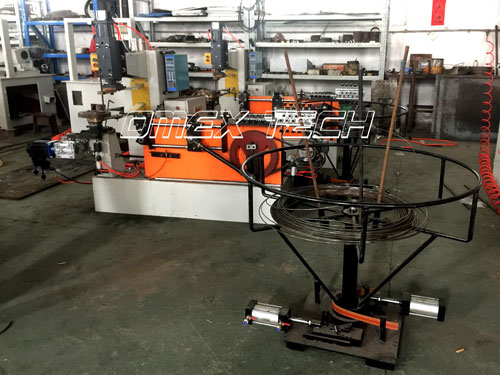

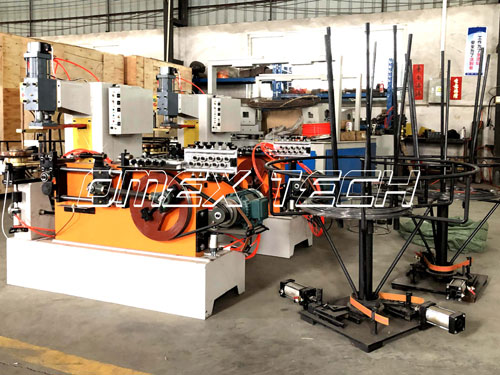

This spot welding machine in this page is for traditional pneumatic type wire trolley, this one is the most economical one, but labor cost is high compared with other twos., the pneumatic type trolley is like below picture.
Inner Ring Welding Machine Specifications | |
Model Number | OIR-1 |
Fan Guard Size | 12-20inch (customized for up to 24inch fan guard) |
Suitable Wire Diameter | 1.2-1.8mm |
Transformer | 25KVA |
Motor | 1.37KW |
Wire Spool | Pneumatic type or Automatic type |
Wire Spool Loading Quantity | 100KG |
Spoke Number | Three welding gear for option |
Air consumption | 30-40L/M |
Capacity | 25-30sec/pc (for 16inch fan guard ) |
Power connection | 380-440V 50hz 3phase |
Machine size | 1600*960*1350mm |
Weight | 460KGS |
