Outer Ring Welding Machine
In OMEX, we have three types outer ring welding machine, one is traditional pneumatic welder, another is servo type, the latest type is servo type but with edge trimming function, but three station type.

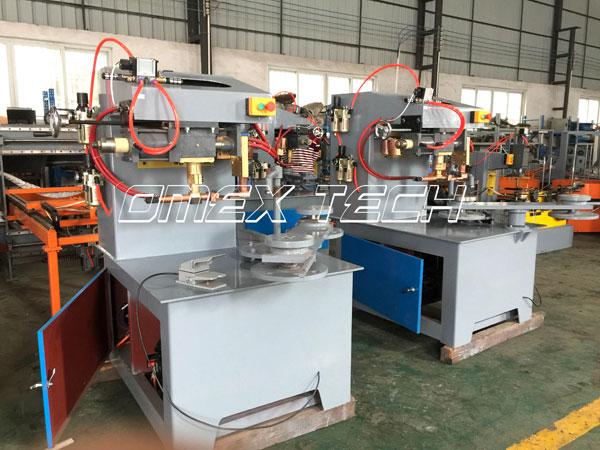

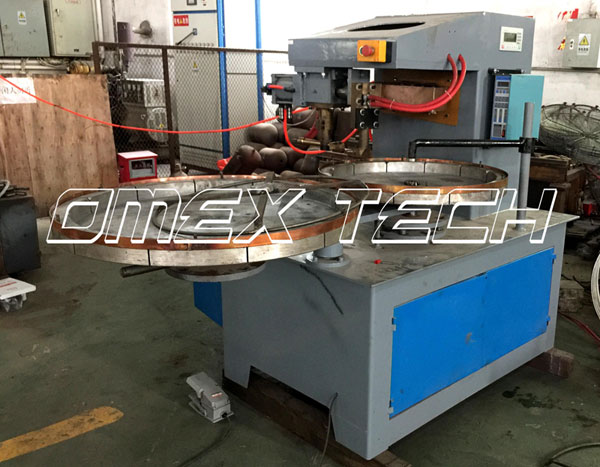

This one is pneumatic type machine, it is a two-station machine, the function of this machine is used to weld outer ring and the forming the wire net together, when one station is loading, another station is welding, this is good for operation and increase the production capacity.
Generally, the outer ring machine is good for mass production, it also can adjust the speed according to different shape of fan guard.
Outer Ring Welding Machine Specifications | |
Model Number | OOR-3 |
Fan Guard Size | 12-20inch (customized for up to 32inch fan guard) |
Wire Diameter | 2-4mm |
Transformer Rate Power | 50KVA |
Mold Rotation | Pneumatic type (Servo Motor Type for option) |
Cooling way | Water cooled |
Air consumption | 80-100L/M |
Capacity | 15-30sec/pc (according to fan guard size) |
Power connection | 380-440V 50hz 3phase |
Machine size | 1200*1100*1600mm |
Weight | 780KGS |
