  • Inner Ring Welding Machine- Full Automatic Type

    品名: Inner Ring Spot Welding Machine-Full Automatic Type

    关键词:inner ring Spot welding machine, spot welding machine, star welding machine

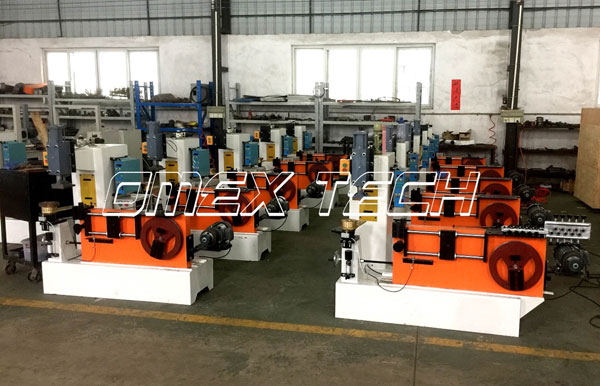

    OMEX develops the latest inner ring spot welding machines for radiate type fan guard, full automatic type, from wire feeding , center disc feeding and finish fan guard pick up, all are done automatically, this can help you to save your labor cost greatly and also increase the production capacity .

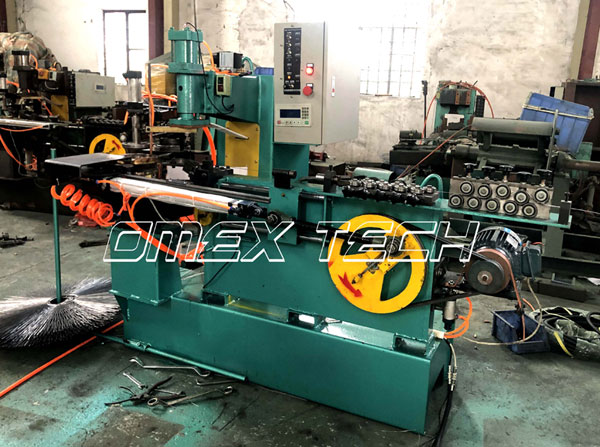

    This single spot-welding machine in this page is for automatic wire spool, this type of spool is control by AC frequency controller, wire feeding and stopped automatically, there are three gears for three different spokes for the guards, it saves the labor cost and good for operation, one worker can operate at least 3-4machines at the same.





    Inner Ring Welding Machine Specifications

    Model Number

    OIR-1

    Fan Guard Size

    12-20inch (customized for up to 24inch fan guard)

    Suitable Wire Diameter

    1.2-1.8mm

    Transformer

    25KVA

    Motor

    1.37KW

    Wire Spool

    Automatic type

    Wire Spool Loading Quantity

    100KG

    Spoke Number

    Three welding gear for option

    Air consumption

    30-40L/M

    Capacity

    25-30sec/pc (for 16inch fan guard )

    Power connection

    380-440V 50hz 3phase

    Machine size

    1600*960*1350mm

    Weight

    460KGS
