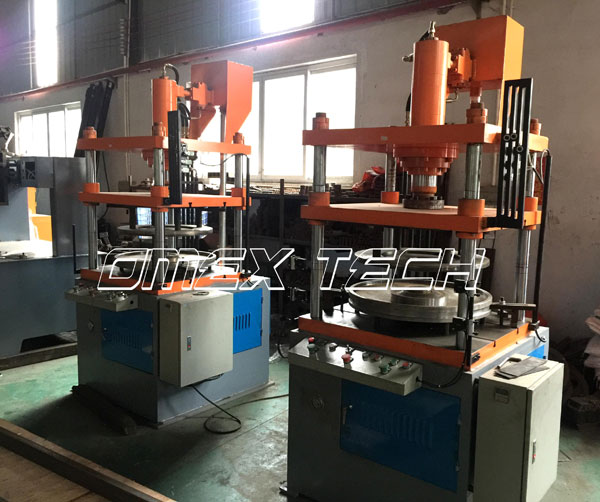

This hydraulic press forming machine is mainly for fan guard pressing and forming ,it can form different shapes of fan guard by different molds, four support stand poles, very strong and stable. Through Hydraulic Oil to drive and transfer the pressure, control system is control by micro computer. Different dimension fan guard needs different moulds and workable, except for fan guard, we also supply press forming machine for fan base, fan motor cover etc.
Hydraulic Press Forming Machine Specifications | |
Model Number | OHP-2 |
Fan Guard Size | 12-20inch (customized for up to 24inch fan guard) |
Capacity | 8-10second/pc |
Pressure | 25Ton |
Oil Motor | 3.75KW |
Table size | 580*700mm (Bigger size avaiable) |
Oil Tank | 150L |
Spoke Number | Three welding gear for option |
Air consumption | 30-40L/M |
Capacity | 25-30sec/pc (for 16inch fan guard ) |
Power connection | 380-440V 50hz 3phase |
Machine size | 1250*1100*2250mm |
Weight | 1750KGS |
