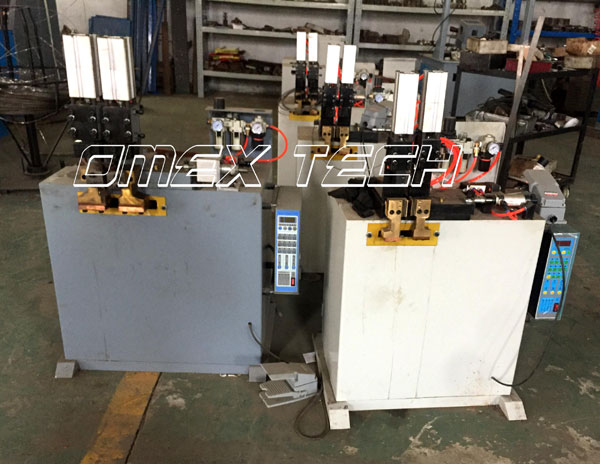

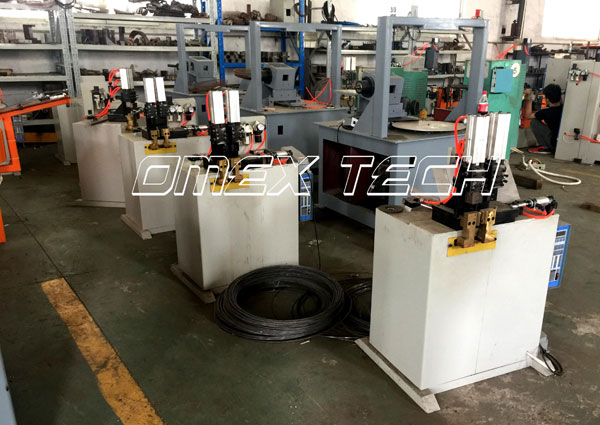

The butt welding machine is using to join the wire rings made by the ring bending machine, wire ring feeds manually and pneumatic clamping steady for welding properly.
After press the foot pedal the welding process, the two ends are welded together by the current which then flows and the upset force which is applied. Optionally, preheating is carried out to achieve an optimal temperature profile.
Butt Welding Machine Specifications | |
Model Number | OBW-6 |
Wire diameter | 1-5mm |
Rated Power | 30KVA |
Max. welding area | 80mm2 |
Cooling way | Water cooled |
Air consumption | 10-15L/Min |
Capacity | 2-5 sec/pc (depends on worker’s skill) |
Power connection | 380-440V 50hz 3phase |
Machine size | 800*600*1150mm |
Weight | 220KGS |
