Outer Ring Welding Machine
In OMEX, we have three types outer ring welding machine, one is traditional pneumatic welder, another is servo type, the latest type is servo type but with edge trimming function, but three station type.

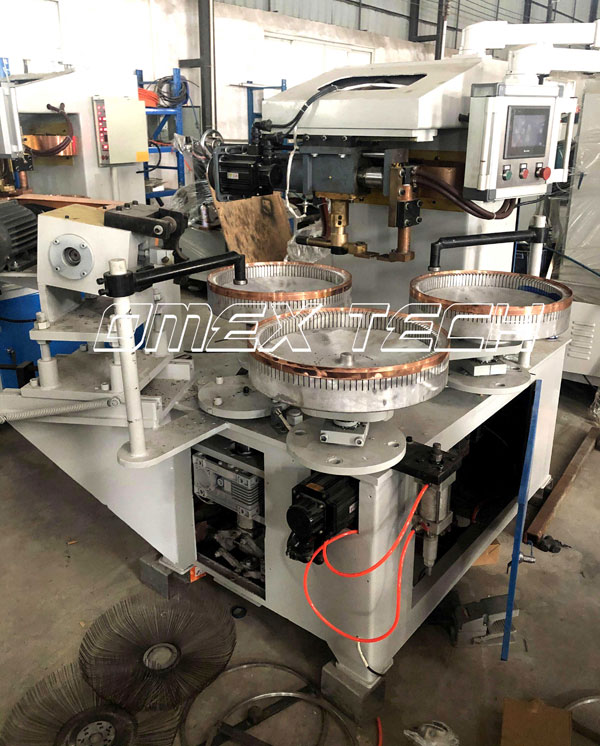

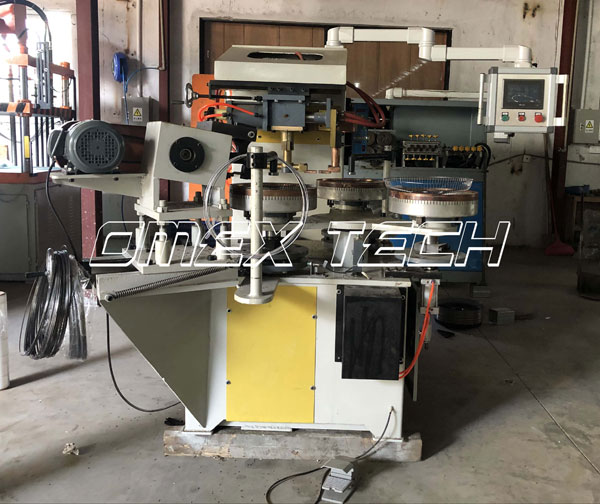

This one is servo motor type machine with edge trimming, three station one, the mold rotation by servo motor instead of by pneumatic compressor air, more stable and precision, it makes more quality fan guard.
This machine is the latest version and capacity is high. when one station is loading, another station is welding, and the third station is doing the edge trimming, this is save your labor greatly and also increase the production capacity.
Outer Ring Welding Machine Specifications | |
Model Number | OOR-3S |
Fan Guard Size | 12-20inch (customized for up to 32inch fan guard) |
Wire Diameter | 2-4mm |
Transformer Rate Power | 50KVA |
Mold Rotation | Servo Motor, three station type |
Cooling way | Water cooled |
Air consumption | 80-100L/M |
Capacity | 15-30sec/pc (according to fan guard size) |
Power connection | 380-440V 50hz 3phase |
Machine size | 1800*1400*1850mm |
Weight | 1280KGS |
